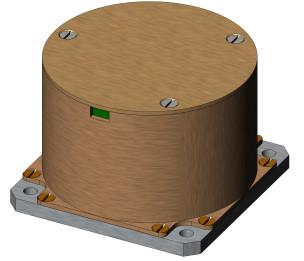

0.5 °/Hr Bias Drift Single Axis Gyro

Model XB120/F50 High Accury Single-axis Fiber Optic Gyroscope With 0.5 °/hr Bias Drift

F50 type fiber optic gyroscope is a uniaxial low precision military grade fiber optic gyroscope produced by Institute of
Photoelectric Technology, Beijing University of Aeronautics and Astronautics.

Main performance indicators

Bias Drift at full temperature range from －40℃ till 60℃	＜0.5°/hr(1σ )	2H continuous test,10s smooth result
Bias Drift Repeatability at full temperature range from －40℃ till 60℃	＜0.5°/hr(1σ )	Calculation results of six test data
Random Walk	＜0.05°/√hr
Scale Factor Non-linearity at full temperature range from －40℃ till 60℃	＜200ppm(1σ )
Scale Factor Repeatability at full temperature range from －40℃ till 60℃	＜200ppm( 1σ)	Calculation results of three test data
Range of measured angular rate	±500°/s	It can be adjusted according to need
Bandwidth	≥200Hz	The internal closed-loop bandwidth is larger than 2K,and the updata rate of output data determines the bandwidth of gyroscope
Operating temperature	－40℃ ~60℃
Storage temperature	－50℃ ~70℃
Vibration	4.2g,20Hz~1000Hz	Sweep-frequency Vibration without Resonance

Definition of mechanical interface

Dimensions and Weights of Fiber Optic Gyroscopes

Outline size	50mm×50mm×35mm
Weight	≤120g
Mounting hole spacing	41mm×41mm
Mounting screws	φ3.4
Installation Surface Accuracy	Flatness 0.01mm

Power requirements
XB120/F50 fiber optic gyroscope is powered by +5V DC power supply.

Power Supply Requirements for Fiber Optic Gyroscopes

＋5V power supply	5W	The maximum impulse current is closed to2A
－5V power supply	3W
Power precision	±5%
Power ripple	20mV	Vpp
Gyroscope power consumption at room temperature	＜2W
Full temperature Power Consumption of Gyroscope	＜5W	－40℃ ~60℃

Interface Definition and Communication Protocol

The external interface of gyroscope adopts lead-out mode. The specification of lead-out line AF-250A-7*0.12, single point and single line, length not less than 150 mm, lead definition is distinguished by color.

Wiring table

Electrical characteristics	Lead color	Lead specification
T＋	green	AF-250A-7×0.12
T－	violet	AF-250A-7×0.12
－5V	yellow	AF-250A-7×0.12
GND	black	AF-250A-7×0.12
＋5V	gules	AF-250A-7×0.12
