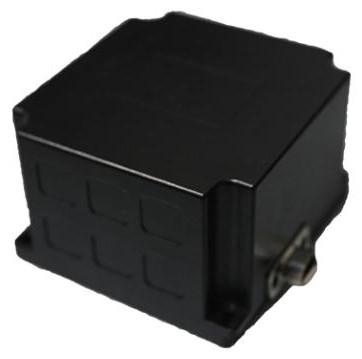

Model XB220 High Accury There-axis Fiber Optic Gyroscope With 0.5 °/hr Bias Drift

Ask Lasest Price
Brand Name :	THUNDSEA
Model Number :	XB220
Certification :	CCS

Add to Cart

Product Details
Company Profile

Model XB220 High Accury There-axis Fiber Optic Gyroscope With 0.5 °/hr Bias Drift

Model XB220 High Accury There-axis Fiber Optic Gyroscope With 0.5 °/hr Bias Drift

Product reviews

The XB220 biaxial closed-loop fiber optic gyro is an inertial angular rate sensor designed for a bidimensional angular rate measurement control system. XB220 biaxial closed-loop fiber optic gyroscope has no moving parts inside, which can adapt to the environmental application conditions of big vibration and big impact. It is especially suitable for missile type seeker, stable platform control system and other applications.

Performance index

The index name	Index rquirements	Note
Range of measured angular rate (°/s)	－700~700
Scale factor nominal value (”/LSB)	0.5	Error≤±10%
Scale coefficient nonlinearity (ppm)	＜50
The scale coefficients are not symmetrical (ppm)	＜50
Scale Factor Repeatability at full temperature range from －40℃ till 60℃ (ppm,1σ)	＜100
Zero mean deviation (°/h)	≤5	Remove the earth’s rotational speed component
Bias Drift at full temperature (°/h,1σ)	≤0.5	Constant temperature test, 1 hour,10 seconds smooth
Bias Drift at full temperature range from 40 till 60 (°/h)	≤2
Bias Drift Repeatability at fixed temperature (°/h,1σ)	≤0.5	Constant temperature test
Input shaft misalignment Angle (’)	≤10	Total tmperature range test
Misalignment Angle is not repeatable (”,1σ)	≤30	Constant temperature test
The threshold value (°/h)	≤0.5
Resolution (°/h)	≤0.5
Zero bias sensitivity (°/h/Gs)	＜0.5
Bandwidth (Hz)	≥200
Output delay time (μs)	≤1000

Environmental adaptability

Warm up time: -45℃～+70℃

Storage temperature: -55℃～+70℃

Temperature shock: -55℃～+70℃

Size and weight

Overall dimensions:64mm×60mm×40mm,

The weight of the top shall not be more than 250 grams. The total weight of the gyro includes cables, connectors and other accessories directly attached to the gyro.

Power supply and power consumption

The working power supply of fog is 5V dc power supply.

+5V Power supply:

The transient power ≤10W

The steady state power ≤5W

-5V Power supply:

The transient power ≤1.5W

The steady state power ≤1.5W
