Brand Name : | THUNDSEA |
Model Number : | VIR8 |
Certification : | CCS |
Payment Terms : | L/C, T/T |
Supply Ability : | 30 set per month |
Delivery Time : | 15 Days |

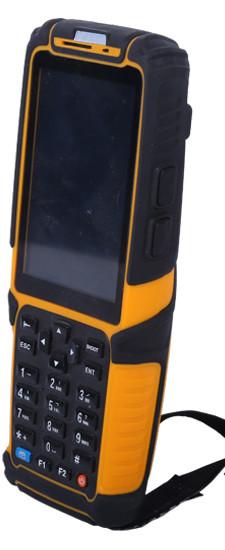

Dual Phase VIR8 Digital Demodulation Beacon Tester small size light in weight low power consumpt
Functions
Beacon Tester is the device for testing EPIRB’s technical
parameter.
Variety of information can be measured and displayed on the Tester,
just like frequency of the input signal,
power, code etc. It can be widely used in testing during EPIRB’s
production, factory inspection, repair and
maintenance, and annual appraisal etc.
Features
◆High-performance: using the latest digital demodulation
technology, small size, light in weight, low power consumption.
◆Friendly interface: On base of Chinese display interface developed
by Android.
◆Adopting structure of industrial handset: easy operation, easy to
carry, High protection level, very suitable for outdoor operation
at ports, docks, ship deck etc.
Specifications
Input frequency | 406.00~406.06MHz,121.5MHz |
Input power | ﹣40dBm~15dBm@406MHz,﹣40dBm~15dBm@121.5MHz |
406MHz' s frequency measurement precision | Accuracy of ±50Hz |
121.5MHz' s frequency measurement precision | Accuracy of ±300Hz |
406MHz' s | Dual phase L code demodulation |
Data storage capacity | 2G |
LCD display | Resolution 320*240 |
Antenna | Omnidirectional and detatchable type |
Battery operating time | 5 hours |
Working temperature | ﹣10℃~50℃ |
![]() |
