Name: CCS 1200kHz 25 Meters RS232 Underwater Positioning System High Accuracy Costeffective
Brand: THUNDSEA
Price: 1 USD

Add to Cart

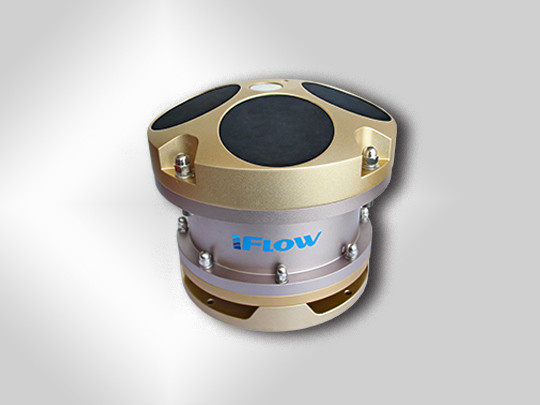

HiFlow RP1200 Current Profile Up To 25 Meters With 0.25% & < 0.2cm/S Accuracy

Features

Current profile up to 25 meters

In broadband mode, ADCP1200 can measure current profile up to 25 meters.

Accuracy of measuring up to 0.25% & < 0.2cm/s

Long-time observation, stable and reliable data

Low power consumption

Using low power technology, the average power is only 3.5W.

High reliability

With mature hardware, compact design

WIFI transmission mode

Support RS232, RS485 and WIFI data transmission, connectable to wireless devices for data transmission. Effective distance 20 meters

Multiple working modes

Support navigation measurement mode, fixed-point flow measurement mode, self-contained mode and DVL integration mode

Technical Specifications

Frequency	1200kHz
Transducer type	Piston type
Beam	5-beam(with central sounding)
Water Velocity	5m/s(typical),20m/s(Maximum)
Water Profiling Maximum Range	25m
Blank distance	0.2m
Velocity resolution	1mm/s
Cell numbers	1-256
Cell size	0.1-2m
Data output rate	1-2Hz
Accuracy of flow measurement	0.25%±5px/s
Working mode	broadband
Bottom tracking Altitude	0.15-35m
Depth rating	200m(standard);1000m or 3000m
Built-in sensors
Temperature	Accuracy:±0.1℃,Range from－10℃ to 60℃
Compass	Accuracy:±0.5°
Tilt(pitch and roll)	Range:±30°;accuracy:±0.2°
Pressure(optional)	Range:0-200m,accuracy:0.5%FS
Power Supply and Communication
Power supply	9-18V DC(nominal 12V)
Power consumption	3.5W(average),0.5W(dormancy),30W(peak)
Interfaces	RS-232,RS-422,WIFI
Baud rate	1200-115200
Flow measuring software	iFlower Flow Measurement Software
Internal storage capacity	8G(Standard Matching)16G Matching
Texture of material	Engineering plastics,aluminum alloys and titanium alloys
Working temperature	－5℃-45℃
Storage temperature	－20℃-60℃

CCS 1200kHz 25 Meters RS232 Underwater Positioning System High Accuracy Cost-effective
