400Khz Real Time Frequency Switching Side Scan Sonnar with Real-time Frequency Switching Function

400Khz and 500 Khz High Resolution Imaging Side Scan Sonnar with Real-time Frequency Switching Function

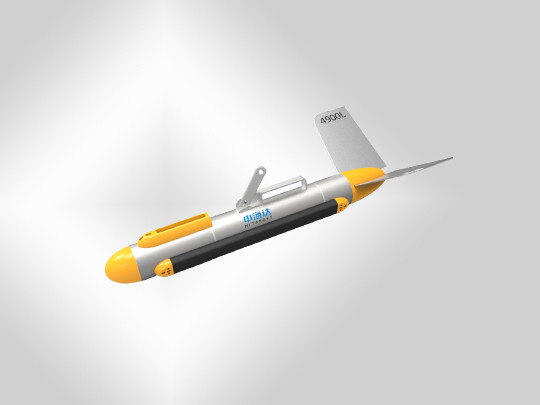

iSide series side scan sonar, with compact transducer design, advanced digital circuit processing technology, providing users with excellent large range and high-resolution underwater images, is an ideal choice for navigation channel, maritime department, marine scientific research institute.

400Khz Real Time Frequency Switching Side Scan Sonnar with Real-time Frequency Switching Function

Performance
Dual frequency
100/400 kHz, 400/900kHz, 400 kHz; dual frequency can work simultaneously
CHIRP & CW transmission mode switchable
CHIRP & CW mode of operation can be switched online, with strong anti-interference, high resolution and large scanning range.
Minimal horizontal beam angle, high range resolution, wide coverage
The minimum horizontal beam angle is 0.2 degrees and the resolution is 1.25 cm, which can distinguish very small targets. The maximum coverage width on one side can reach 600m.
High performance fishlike body with 1000m depth rating
Fluid design, less flow resistance, 316 stainless steel fishlike shell, 1000m depth rating.
Built-in sensors: roll & pitch, heading, pressure, sounding
The attitude sensor measures and outputs the roll & pitch and heading data of the sonar unit in real time, and the software corrects the image in real time to generate more delicate imaging. Real-time depth and height from the bottom generated from the pressure and sounding sensor ensures the sonar travels safely.
High standard Acoustic Performance of Transducers
Split technology of transceiver and transceiver elements to maximize the system's transceiver sensitivity, and the latest L1-3 composite technology to improve the transceiver sensitivity and signal bandwidth.
Chinese and English display control and navigation acquisition software
Simple operation and friendly UI interface, the self-adaptive background equalization technology used for acoustic image to get same signal intensities for different distance, a more balanced image color
Protector
Towing overload protection pin being used to maximize the safety
Technical Specifications

Model	iSide 5000	iSide 4900L	iSide 1400	iSide 400
Working frequency	400kHz&100kHz	400kHz&900kHz	100kHz&400kHz	400kHz
Pulse width	20~1000μs(CW), 1ms~4ms(LFM)	20~1000μs(CW), 1ms~4ms(LFM)	20~1000μs(CW), 1ms~4ms(LFM)	20~500μs(CW), 0.5ms~2ms(LFM)
Signal type	CW/LFM	CW/LFM	CW/LFM	CW/LFM
Horizontal beam angle	0.2°@400kHz, 0.2°@900kHz	0.3°@400kHz, 0.2°@900kHz	0.7°@100kHz, 0.2°@400kHz	0.3°
Vertical Beam Angle	45°	45°	45°	45°
Beam tilt	10°,15°,20°	10°,15°,20°	10°,15°,20°	15°
Range resolution	31.25px	31.25px	62.5px@100kHz, 31.25px@400kHz	31.25px
Maximum range	150@400kHz; 75@900kHz	200@400kHz; 75@900kHz	600m@100kHz; 200m@400kHz	200m
Speed	2-6kn	2-6kn	2-6kn	2-6kn
Working depth	1000m	450m	1000m	100m
Size	105mm*1170mm	105mm*970mm	105mm*1300mm	105mm*767mm
Weight	26kg (316 stainless steel)	18kg (316 stainless steel)	30kg (316 stainless steel)	13kg (316 stainless steel)
Power waste	Max 30W	Max 30W	Max 40W	Max 15W, input:220VAC/12VDC
Built-in sensor	attitude, heading pressure and Sounding	none	attitude, heading, pressure and Sounding	none
Towing cable	Kevlar reinforced cable, Standard 50m (250m optional)	Kevlar reinforced cable, Standard 20m	Kevlar reinforced cable, Standard 50m (250m optional)	Kevlar reinforced cable, Standard 20m
