• Various presentations

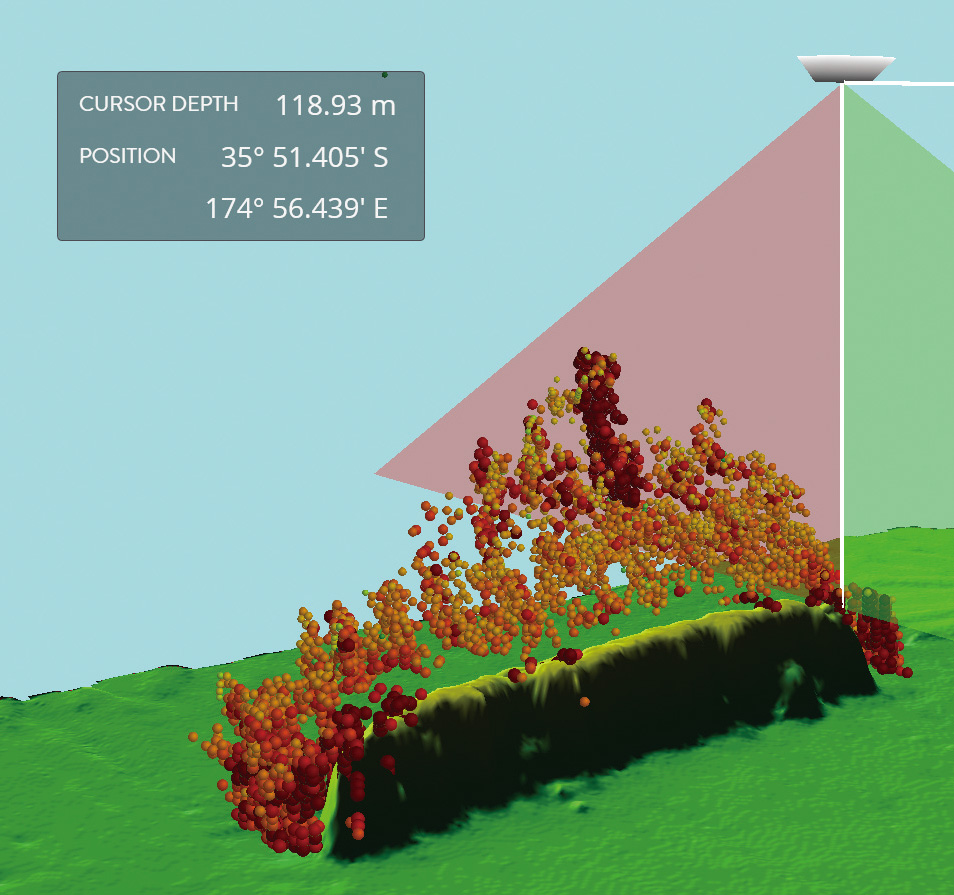

  Fish Density Overlay

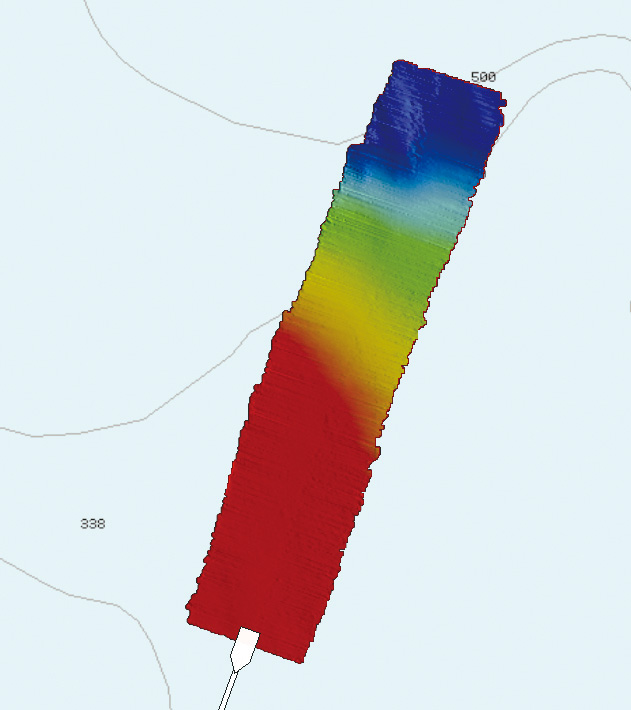

  2D Mapping to 500 m


  Sounder (60 kHz)


  Backscatter (Bottom Hardness) at 200 m

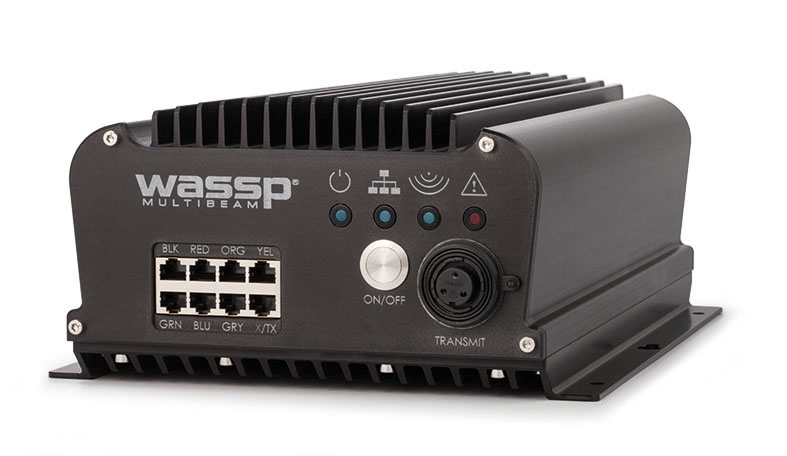

• All-in-one DRX transceiver, incredibly versatile and ready for the next technology advances

  This innovative all-in-one “BlackBox” is not just a robust hardware platform but also introduces cutting-edge technical innovations and incredible versatility for finding your catch. This opens countless new possibilities for your operations.



• WASSP transducer

  The WASSP sonar transducer is available in 2 frequencies.

  - 136-184 kHz Wideband (160 kHz center)
  - 68-92 kHz Wideband (80 kHz center)



Specifications

General

TX Frequency

Wide band
F3/F3i: 160 kHz
F3L/F3Li: 80 kHz

Detection Range

F3: 200 m* (Side Beam Best Performance)
400 m* (Main Beam Directly Under Boat)
F3L: 450 m* (Side Beam Best Performance)
900 m* (Main Beam Directly Under Boat)

*Depth capability subject to a variety of external factors.

Beam Width

120° x 4° (Athwartships x Fore-aft)
PS: 4.4°

Interface

NMEA0183

GGA, GGK, GLL, HDG, HDM, HDT, HVE, PASHR, PTNL PFEC, RMC, RCD, TSS1, ZDA

Display

Display Mode

Bathymetry, Sonar polar view, Sounder (single, triple & quint beam)

(Licensing options)
Backscatter, Open Client Support, Water Column Targets, Uncorrected Data, XYZ export, Sidescan, RTK tides,
other export formats*
* available in 2017

Minimum PC Specs

OS

Windows 8.1, 10

CPU

2 Ghz, 4 Cores/4 Threads

Memory

8 GB (Min. 4 GB)

Screen Resolution

Full HD 1920 x 1080 (Min. XGA 1024 x 768)

Environment

Temperature

0°C to +50°C (storage:-20°C to +85°C)

Relative humidity

IEC60945, 93 % or less at +40°C

Waterproofing

IP53, Bulkhead mounted (IP67 option available)

Vibration

IEC60945 Ed.4

Power Supply

Transceiver Unit

9 to 32 VDC

Others

Size

Transceiver Unit: 216(W) x 260 (D) x 205 (H) mm
Transducer:
WMB-160 (160 kHz) ; 98 (H) x 330 (W) x 168 (D) mm
WMB-80 (80 kHz); 133 (H) x 533 (W) x 340 (D) mm

Weight

Transceiver Unit: 8.3 kg
Transducer:
WMB-160 (160 kHz) ; 15 kg
WMB-80 (80 kHz); 39 kg
