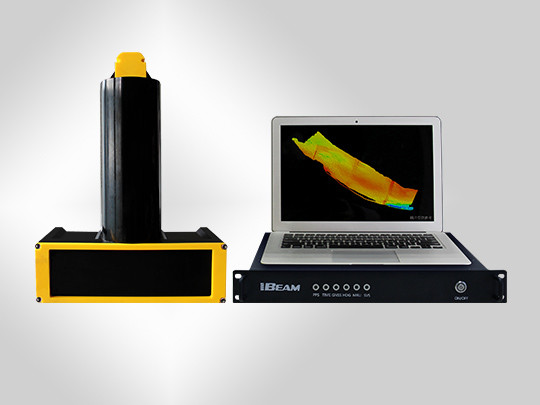

CCS 400khz Multi Beam Echo Sounder Compact Design SuitbaleFor 0.5m~180m Deepth Water

Ask Lasest Price
Brand Name :	THUNDSEA
Model Number :	iBeam 8140
Certification :	CCS
Payment Terms :	L/C, T/T
Supply Ability :	30 set per month
Delivery Time :	15 Days

Add to Cart

Product Details
Company Profile

CCS 400khz Multi Beam Echo Sounder Compact Design SuitbaleFor 0.5m~180m Deepth Water

Features

Miniaturization of products

Easy to install, suitable for installation of small vessels

High beam density

Equiangular and equidistant beam modes are switchable. A maximum of 512 beams are suitable for all investigation tasks.

Real-time roll stabilization

Real-time roll stabilization, maximizes sweep width and improves work efficiency.

High Ping rate

High Ping rate allows higher speed measurement, ensures data quality and saves measurement time.

Depth of water

The measuring depth range is from 0.5 m to 300 m, which meets the needs of shallow water survey.

Normative Requirements

Complying with IHO S44 Super Standard and the Requirements of " Regulation for Survey of Waterway Engineering"

Display and control software-acquisition and navigation software

Powerful, easy operation, user-friendly interface; acquisition software realistic color display, under 3D view automatic marking dimension, coordinates and shallowest water depth of underwater

Technical Specification

Transmitting frequency	400kHz
Beam Coverage Angle	30°-145°(online adjustable)
Sounding resolution	6mm
Beam angle	0.75°xC0.75°
Beam number	512(maximum)
Range of sounding	0.5m-300m
Pressure Depth of Sonar Transducer	50m
Maximum Ping rate	60Hz
Working mode	Equiangular/equidistant mode
Roll stabilization	±10°
Input voltage	220V AC/50Hz
Power waste	200W
Temperature((work/storage)	Sonar system:－2℃~40℃/30℃~55℃
Temperature((work/storage)	Transducer end:－2℃~30℃/30℃~55℃
Transducer Cable Length	Standard 15m(other length can be customized)
Transducer weight/size	17.5kg(in air)/420×320×200mm(titanium alloy)
Transducer weight/size	12.5kg(in air)/340×320×200mm(aluminium alloy)
Deck Unit Weight//Dimension	2.5kg/410×330×50mm
