Low Power Consumption TDF42IMU0 Fiber Optic Inertial Unit High Accuracy

Ask Lasest Price
Brand Name :	NAVI OPTICS
Model Number :	TDF42IMU0
Certification :	CCS
Payment Terms :	L/C,T/T

Add to Cart

Product Details
Company Profile

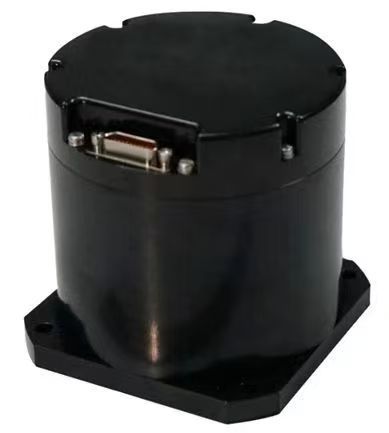

Low Power Consumption TDF42IMU0 Fiber Optic Inertial Unit High Accuracy

Low Power Consumption TDF42IMU0 Fiber Optic Inertial Unit High Accuracy

♦ Overview

Fiber optic inertial units have the advantages of small size, light weight, low power consumption, and high accuracy. They can be used to design pure strapdown, single axis, and dual axis modulation inertial units, meeting the needs of new unmanned platforms, water/torpedo weapons, as well as land and airborne weapon platforms for small size and high-precision inertial unit equipment. They have dynamic measurement functions for carrier angular and linear motion information.

♦ Performance

Project	Content	Index	Remark
Performance indicators of gyroscope
Zero bias indicator	Zero bias stability (100s)	0.05°/h
	Zero bias stability (10s)	0.1°/h
	Variable temperature zero bias stability	0.5°/h
Scale Factor	Full temperature scale factor	≤200ppm
Other indicators	Random walk coefficient	0.01°/√h
Other indicators	Input range	400°/s
Performance indicators of accelerometer
Deviation index	Deviation monthly comprehensive error	50μg
Zero bias indicator	Zero bias temperature sensitivity	50μg/℃
Scale Factor	Scale factor monthly comprehensive error	50ppm
Scale Factor	Scale factor temperature sensitivity	50ppm/℃
Range indicator	Input range	±20g
Whole machine characteristics
Environmental performance indicators	Operation temperature	-40℃～60℃
Environmental performance indicators	Storage temperature	-45℃～70℃
General requirements	Power supply	18～36V(DC)
General requirements	Stable power consumption	≤12W	Startup power consumption ≤ 25W

♦ Electrical interfaces

Pin	Connectivity	Signal Name	Signal Characteristics
1,2	External power supply	PCS power supply positive	24V
3,4		PCS power supply ground	Power Ground
5	200Hz signal output	IMU_TX1+	IMU data output positive
6		IMU_TX1-	IMU data output negative
9	Synchronization signal	IMU_RX1+	IMU synchronization signal positive
10		IMU_RX1-	IMU synchronization signal negative

♦ Structural appearance and dimensions
